RibbonBar resize behavior

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

Hi to all,

we have CodeJock Suite Pro2008 and a question about RibbonBar: is there anyone who knows how to control the RibbonBar resize behavior? With default settings I�ve noted that reducing the RibbonBar width the texts are lost and the 32 pixel icons are resized to 16 pixel with quality loss; it would be nice to have the Microsoft Office 2007 behavior where split buttons are automatically created when the bar is too small.

Thanks in advance for any help,

Andrea Pierini

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
apierini Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 25 June 2008 Location: Italy Status: Offline Points: 18	Post Options Post Reply Quote apierini Report Post Thanks(0) Quote Reply Topic: RibbonBar resize behavior Posted: 04 August 2008 at 5:23am
	Hi to all, we have CodeJock Suite Pro2008 and a question about RibbonBar: is there anyone who knows how to control the RibbonBar resize behavior? With default settings I�ve noted that reducing the RibbonBar width the texts are lost and the 32 pixel icons are resized to 16 pixel with quality loss; it would be nice to have the Microsoft Office 2007 behavior where split buttons are automatically created when the bar is too small. Thanks in advance for any help, Andrea Pierini

Oleg Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 21 May 2003 Location: United States Status: Offline Points: 11234	Post Options Post Reply Quote Oleg Report Post Thanks(0) Quote Reply Posted: 04 August 2008 at 7:20am
	Hi, Check our Ribbon sample - it works like in Office 2007 - only if you have single button on group it will not work.
	Oleg, Support Team CODEJOCK SOFTWARE SOLUTIONS

apierini Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 25 June 2008 Location: Italy Status: Offline Points: 18	Post Options Post Reply Quote apierini Report Post Thanks(0) Quote Reply Posted: 04 August 2008 at 12:50pm

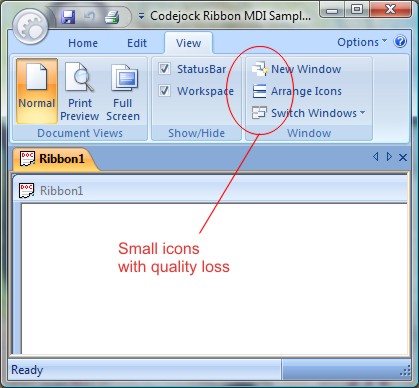

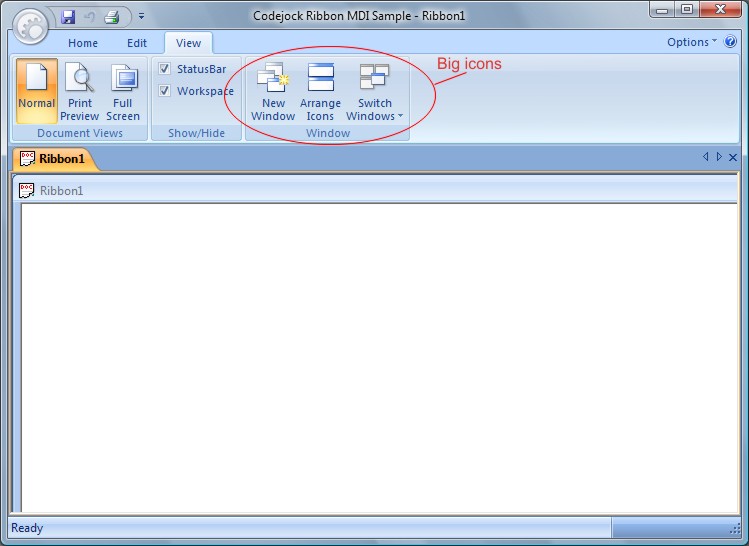

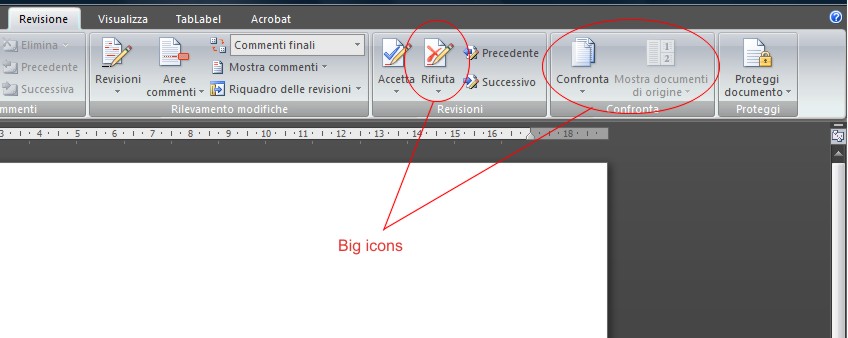

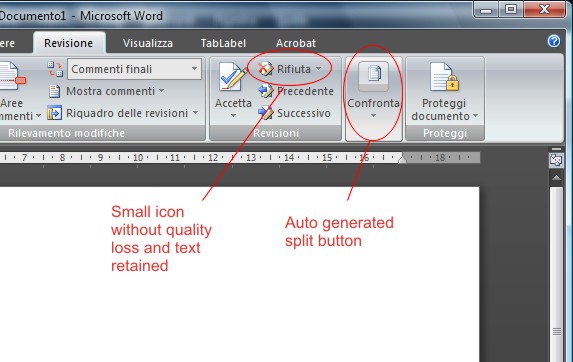

	Hi Oleg, I better explain myself. This is Codejock: and This is Word 2007: and Is it possible to have small icons without quality loss? I tried to give the the control a couple of bitmaps (big and small) but with no success. Is it possible to force to retain text? And is it possible to force the generation of the split button before the small icons appear? Thanks in advance and sorry for any mistake. Andrea Pierini

ijwelch Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 20 June 2006 Status: Offline Points: 262	Post Options Post Reply Quote ijwelch Report Post Thanks(0) Quote Reply Posted: 04 August 2008 at 8:54pm
	The icon quality loss is due to not having loaded 16x16 icons for the toolbar controls in question.

Oleg Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 21 May 2003 Location: United States Status: Offline Points: 11234	Post Options Post Reply Quote Oleg Report Post Thanks(0) Quote Reply Posted: 05 August 2008 at 1:32am
	Hi, yes, just add 16*16 icons for same Id. our SDI Ribbon sample shows it.
	Oleg, Support Team CODEJOCK SOFTWARE SOLUTIONS

apierini Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 25 June 2008 Location: Italy Status: Offline Points: 18	Post Options Post Reply Quote apierini Report Post Thanks(0) Quote Reply Posted: 05 August 2008 at 3:51am
	Hi, could you please tell me with more details how to add 16x16 and 32x32 icons for the same Id and set the CommandBar Control to show with 32x32 size when there is enough space and 16x16 when there is not enough space? I searched through Samples\CommandBars\C#.NET\RibbonSample but couldn't find the code snipped you are referring to, where is it? Thanks, Andrea Pierini PS: By the way I can compile the example but I can't run it because I always get "class not registered error"; it is very strange because I can run my application so the ocx should be registered fine.

Oleg Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 21 May 2003 Location: United States Status: Offline Points: 11234	Post Options Post Reply Quote Oleg Report Post Thanks(0) Quote Reply Posted: 05 August 2008 at 7:40am
	Hi, Here code from sample: CommandBars.Icons.LoadBitmap(resDir + "SmallIcons.bmp", new int[] {ID.ID_FILE_NEW, ID.ID_FILE_OPEN, ID.ID_FILE_SAVE, ID.ID_EDIT_CUT, ID.ID_EDIT_COPY, ID.ID_EDIT_PASTE, ID.ID_FILE_PRINT, ID.ID_APP_ABOUT}, XtremeCommandBars.XTPImageState.xtpImageNormal); CommandBars.Icons.LoadBitmap(resDir + "LargeIcons.bmp", new int[] {ID.ID_EDIT_PASTE, ID.ID_EDIT_FIND, ID.ID_PAGES_NEW, ID.ID_PAGES_COVER, ID.ID_PAGES_BREAK, ID.ID_TABLE_NEW, ID.ID_ILLUSTRATION_PICTURE, ID.ID_ILLUSTRATION_GRAPHIC, ID.ID_ILLUSTRATION_CHART, ID.ID_INSERT_HEADER, ID.ID_INSERT_FOOTER, ID.ID_INSERT_PAGENUMBER, ID.ID_TEXT_TEXTBOX, ID.ID_TEXT_PARTS, ID.ID_TEXT_WORDART, ID.ID_TEXT_DROPCAP, ID.ID_SYMBOL_EQUATIONS, ID.ID_SYMBOL_SYMBOL}, XtremeCommandBars.XTPImageState.xtpImageNormal);
	Oleg, Support Team CODEJOCK SOFTWARE SOLUTIONS

apierini Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 25 June 2008 Location: Italy Status: Offline Points: 18	Post Options Post Reply Quote apierini Report Post Thanks(0) Quote Reply Posted: 06 August 2008 at 10:58am
	Thanks a lot, I was able to load both icons. Regards, Andrea Pierini
