CXTPMenuBar only shows when mouse hovered over it.

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

Hi!

After toying around with the Theme of our application, I stumbled against the following problem:

Our software uses modal frames for Human-Computer Interfacing. After applying the theme of Visual Studio 2005 to the main frame, I'd like all the modal frames to have the same type of menu-bar, in stead of the old MFC-style menu bars.

However, these modal frames are given their menu's after creation, and dynamically, so no resource_ID can be used. I've noticed the LoadMenu function, and applied it. This seems to work. A Visual Studio 2005 themed menu is added to the application.

The only problem is that the menu is only visible when the mouse hovers over it.

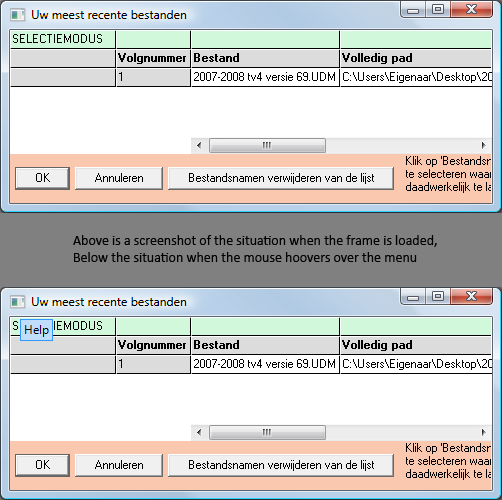

The image above shows it.

I've done InitCommandBars(); in the onCreate of the frame. In our own setMenu function, i:

  CXTPCommandBars* pCommandBars = GetCommandBars();
  CXTPCommandBar* pMenuBar = pCommandBars->GetMenuBar();
  pMenuBar->LoadMenu(&menu, true);
  pMenuBar->SetFlags(xtpFlagIgnoreSetMenuMessage);

Does anyone know why the menu doesn't appear normally? Did I not implement it correctly? Am i missing something?

Thanks in advance.

edited: Picture was wrongly aligned..

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
BobWansink Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 24 January 2008 Status: Offline Points: 59	Post Options Post Reply Quote BobWansink Report Post Thanks(0) Quote Reply Topic: CXTPMenuBar only shows when mouse hovered over it. Posted: 31 January 2008 at 6:10am
	Hi! After toying around with the Theme of our application, I stumbled against the following problem: Our software uses modal frames for Human-Computer Interfacing. After applying the theme of Visual Studio 2005 to the main frame, I'd like all the modal frames to have the same type of menu-bar, in stead of the old MFC-style menu bars. However, these modal frames are given their menu's after creation, and dynamically, so no resource_ID can be used. I've noticed the LoadMenu function, and applied it. This seems to work. A Visual Studio 2005 themed menu is added to the application. The only problem is that the menu is only visible when the mouse hovers over it. The image above shows it. I've done InitCommandBars(); in the onCreate of the frame. In our own setMenu function, i: CXTPCommandBars* pCommandBars = GetCommandBars(); CXTPCommandBar* pMenuBar = pCommandBars->GetMenuBar(); pMenuBar->LoadMenu(&menu, true); pMenuBar->SetFlags(xtpFlagIgnoreSetMenuMessage); Does anyone know why the menu doesn't appear normally? Did I not implement it correctly? Am i missing something? Thanks in advance. edited: Picture was wrongly aligned..

jimmy Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 11 November 2003 Location: Austria Status: Offline Points: 516	Post Options Post Reply Quote jimmy Report Post Thanks(0) Quote Reply Posted: 31 January 2008 at 6:56am
	Hi, If this is a dialog, look into the DialogSample, function RepositionControls. else look for correct base codejock classes. Jimmy

BobWansink Members Profile Send Private Message Find Members Posts Add to Buddy List Groupie Joined: 24 January 2008 Status: Offline Points: 59	Post Options Post Reply Quote BobWansink Report Post Thanks(0) Quote Reply Posted: 31 January 2008 at 9:56am
	I've looked at the function and implemented it in the Program. The system doesn't compile though, because DialogSample is derived from CXTPDialogBase<CXTResizeDialog>. My modal dialogs are all derived from CXTPFrameWnd, thus, I have no acces to the function Offset. I've commented it out, unsure of whether this would effect the outcome of the function. The result was that the problem is still there. Is the Offset function important (I assume it is, it would not be there if it wasn't)? Thanks!
